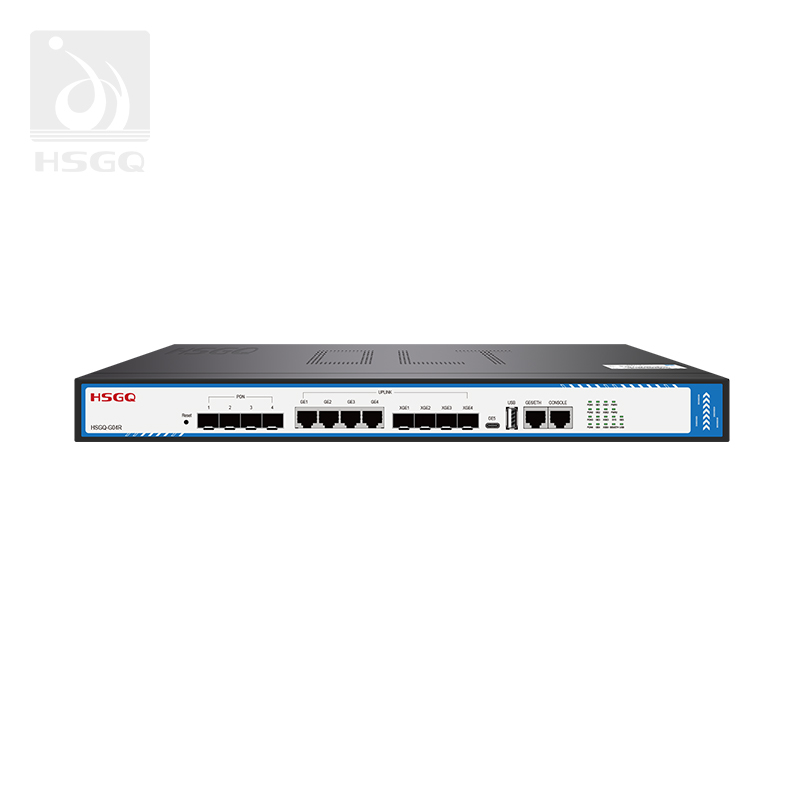

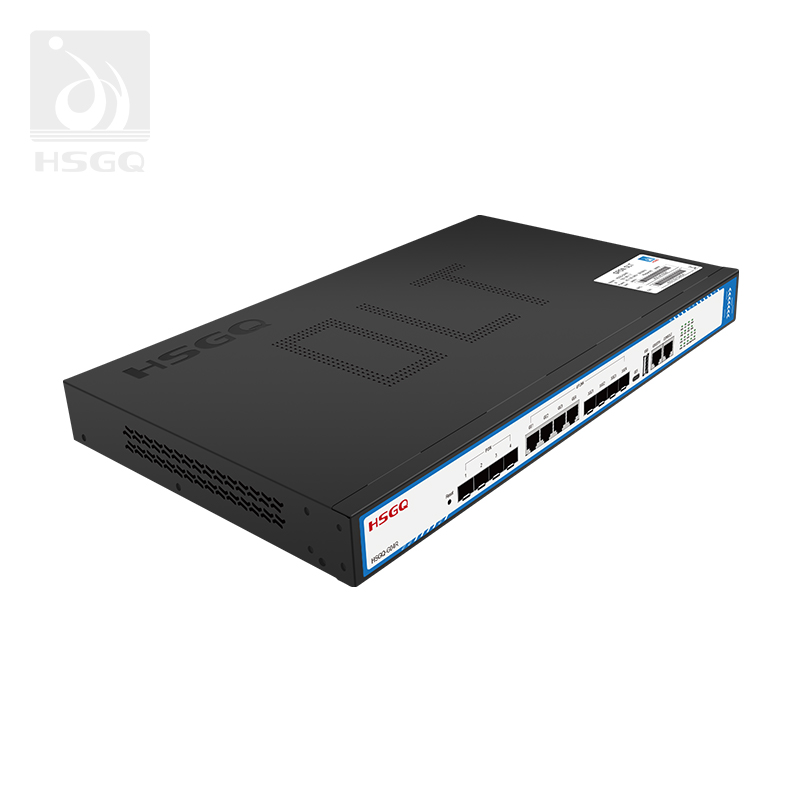

HSGQ-E04M:
1 power supply, 4* fixed EPON Port, 4*GE SFP Port, 1* console Port, 1*NMS Port
Quantity: | |
---|---|
Feature
● Support Full Wier-Speed Forwarding
● 16K MAC address table.

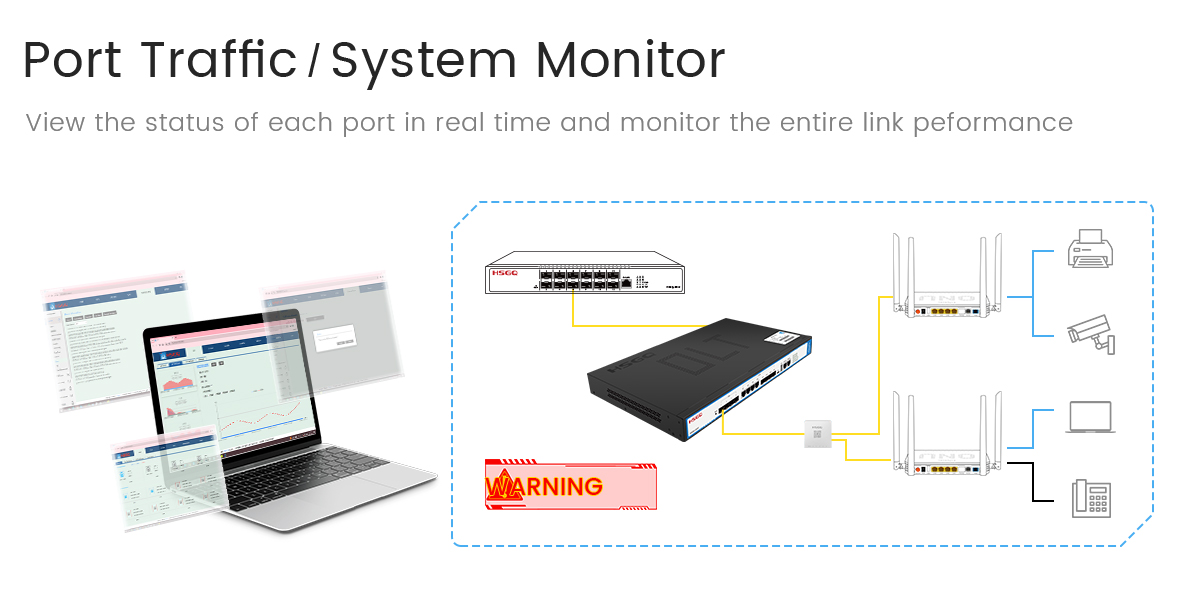

● Complete network management functions
● Support flexible DBA, up and down traffic speed control.
● Support lP ToS,IEEE802.1Q
● Support port aggregation
● Port-based traffic control, traffic shaping.
● Support ONU auto-discovery, and auto-registration.
● Support the automatic loop-back test function.
● VLAN powerful features, including VLAN Stacking, Trunk,Translation.
● Support lGMP Function
● Support ACL/QoS
Advantage
● EPON: OLT follows the technical standard of lEEE802.3ah and China telecom.(YD/T 1475-2006)
● Optical link diagnosis: complete warning mechanism

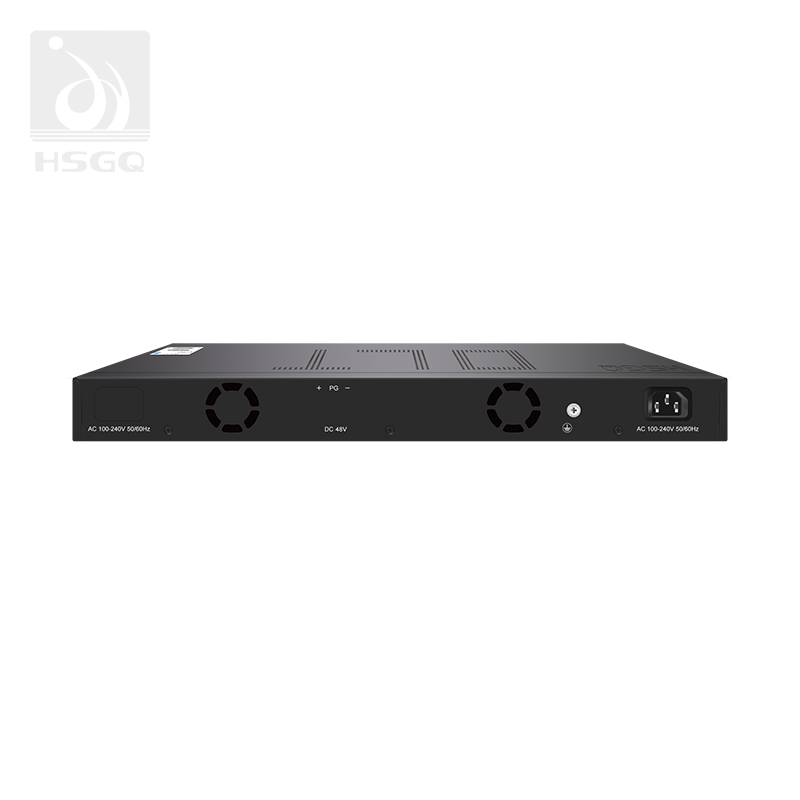

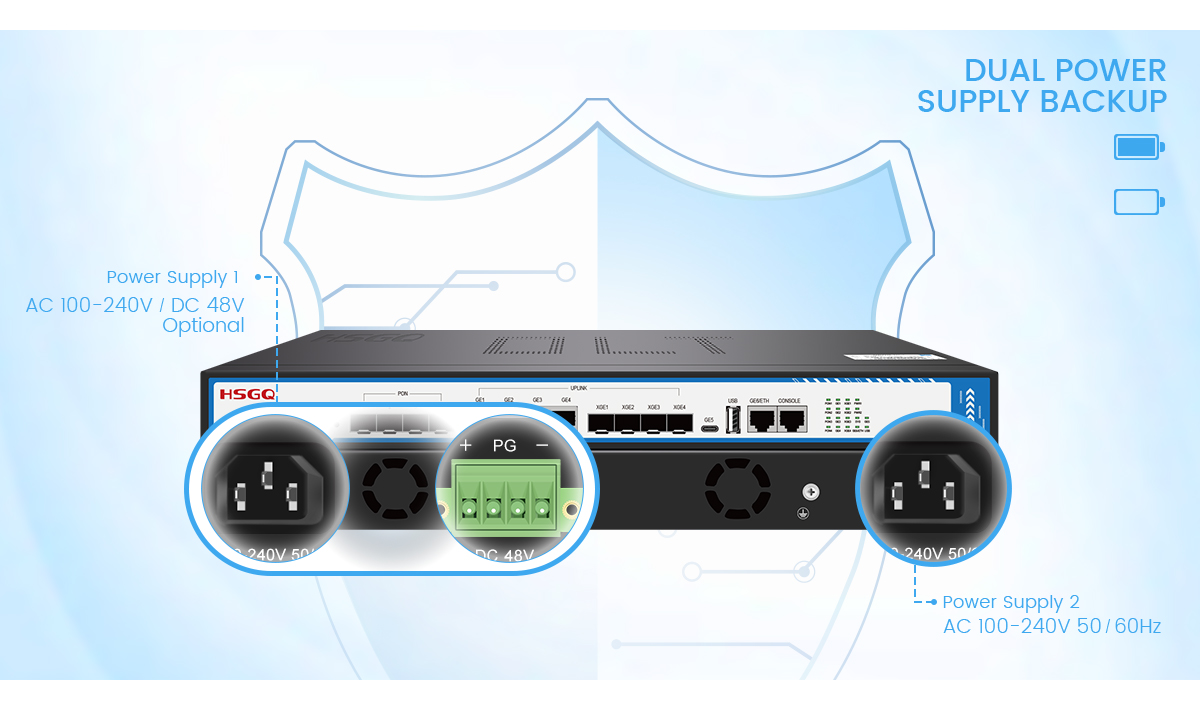

● High reliability: supports dual power supply(Default single power supply).
● Dimension: 1U cassette save space, low power consumption
● Uplink: support electrical and optical modules, can be flexibly configured according to different networking.
● Capacity: Each PON supports up to 64 terminals, the whole device supports up to 256 ONUs under full configuration.
Technical Parameter
Model | HSGQ-E04M |
DDR | 512M |
FLASH | 32M |
Size (L*W*H) | Product size:250mm×180mm×44mm Package size:315mm×190mm×88mm |
Weight | <4kg |
Uplink | QTY: 4 SFP: 4 Uplike 1.25G SFP slots |
PON | QTY: 4 Physical Interface: 4 PON 1.25G SFP slots Optical module Type: 1000BASE-PX20+/PX20++/PX20+++ Max splitting ratio: 1:64 |
Management Ports | 1*NMS+1*Console |
Power Input | AC: 100V~240V 47/63Hz |
PON function | Support auto register Blacklist and whitelist onu DBA configure P2P ONU authorization |
Temperature | -10℃~60℃ |
Humidity | 5%~95% |
Maintenance | Telnet remote maintenance |
Support standard | IEEE 802.3ah EPON IEEE802.3(10Base-T) IEEE802.3u(100Base-TX) IEEE802.3z (1000BASE-X) IEEE802.3ab (1000Base-T) IEEEE802.1d(STP) IEEEE802.1W(RSTP) IEEE802.1p(COS) IEEE802.1x(Port Control) IEEE802.3x (flow-control) |
Configuration and Management | CLI,WEB,SNMP/NMS SSHv1/v2 Software and bootrom upgrade by TFTP and FTP Record and download log Chinese/English command prompt Ping Debug diagnosis User management; Alarm management. |
Layer 2 function | Support 4094 VLAN;performance statistic 16K MAC address;mac address management Port mirror Port isolation |
